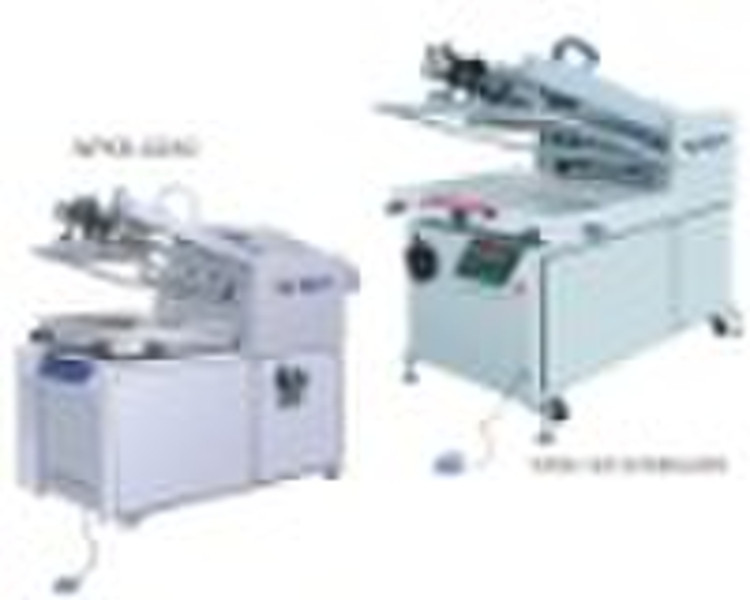

Screen printing machine (WPKB Series)

The printing system of line-contact running structure , and ink scraper goes ahead little by pneumatic and its controller using frequency motor, speed regulated step-less, and running steadily. Honeycombed Aluminum-alloy stainless steel table, vacuum sorption and little adjustment. It has three operation modes such as single, manual and continuous. The ink scraper is worked by pneumatic and step-less is regulated by frequency motor. Honeycombed Aluminum alloy stainless steel working table, with vacuum sorption, he table can be adjusted accurately at up and down, left and right or front and back. With release-off screen device to prevent form pasting. All electric parts are controlled by computer, it is with reliable working and long life. Main specification:Model and SizeWPKB-6090WPKB-4060WPKB-14010WPKB-9880Max printing area(mm)600×900400×6001400×10001000×800Max printing speed(p/h)12001200800900Table size(mm)800×1000600×7001500×12001100×1000Table adjustment of longitudinal and horizontal( mm)±5mm±10mm±5mm±5mmPower(Kw)3.03.03.03.0
